Material and finish

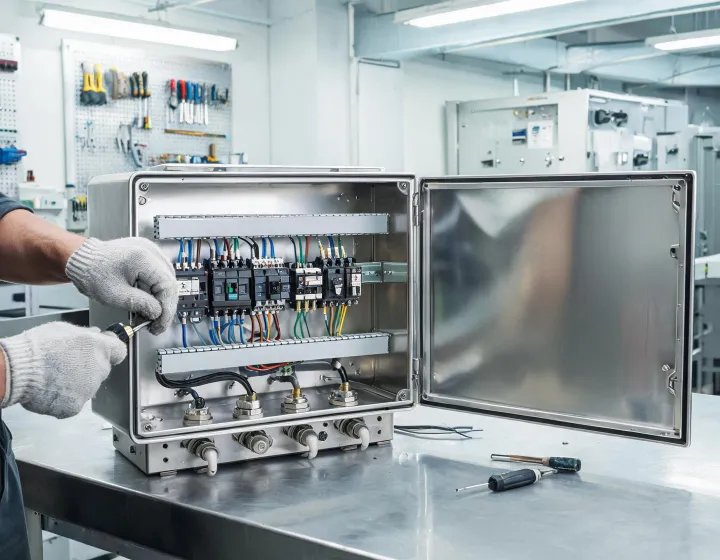

Match painted steel, stainless construction or nonmetallic options to exposure and cleaning practice.
SPECIFICATION MATRIX
| Decision group | Inputs to verify | Engineering consequence |
|---|---|---|
| Environment | Indoor or outdoor, washdown, corrosion, dust and ambient temperature | Material, finish, gasket and enclosure type |
| Electrical assembly | Equipment layout, conductor bend space, grounding and SCCR documentation | Usable depth, mounting panel and access clearances |
| Thermal control | Internal watts, solar load, duty cycle and desired internal temperature | Ventilation, air conditioning, heaters or passive management |
ENGINEERED DETAIL
Review construction details that affect installation labor, maintenance access and the integrity of the assembled control panel.
Match painted steel, stainless construction or nonmetallic options to exposure and cleaning practice.
Check hinge orientation, latch style, sealing surfaces and access needs before fabrication.
Reserve gland, wireway and bend-space zones without compromising ingress protection.
Account for internal dissipation, ambient extremes and component derating at the design stage.
Send the installation conditions to an engineer or ask for distributor availability on an identified series.
